Foco One 1200

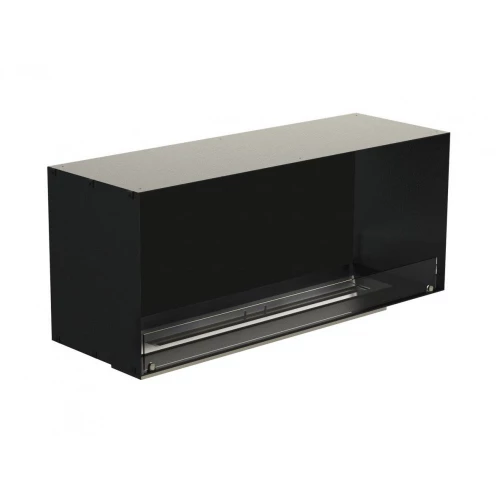

Exterior Frame for Foco One 1200 and Foco Two 1200 Bioethanol Fireplaces

The outer frame is mounted on the Foco 1200 inner frame and provides a frame around the built-in fireplace.

If you build your Foco One or Foco Two bio ethanol fire into an existing wall, it can be difficult to get a perfect finish around the frame. With this exterior frame, you can easily hide all imperfections and the grouting wont need to be perfect.

Theexterior frame is made from the same steel and with the same powder coating as the Foco built-in frame. The frame itself has a width of 5 cm all the way around and has a thickness of 4 mm.

Installation of the Exterior Frame

Installation requires the following tools:

• Drill
• Metal Drill

Procedure:

1. Remove the safety glass and glass holders from the built-in frame
2. Slide the exterior frame into the inner frame
3. The mounting holes in the bottom of the outer frame and the inner frame should now fit together
4. Attach the glass holders through both the exterior and the inner frame
5. At the top of the inner frame, drill two holes that match the holes in the outer frame
6. Now screw the outer frame through the holes drilled in the built-in frame and also in the wall

This Exterior Frame Fits the Following Foco Models

• Foco One 1200 Slim
• Foco Two 1200 Slim
• Foco One 1200
• Foco Two 1200

Superior Burner with Edge 5L

The Superior Burner with Edge 5L from ScandiFlames is an ideal choice for larger DIY projects where you want an efficient and environmentally friendly bioethanol fireplace. This 1-meter-long burner has a capacity of 5 liters and provides up to 6 hours of burning time per refill. It is designed with an edge, which allows you to sink the burner into furniture, walls, or other structures, giving a stylish and modern look. The burner is made of stainless steel, which makes it durable and easy to clean, as it does not produce smoke, soot, or ash.

Burner and Heat Output

The burner has a capacity of 5 liters and provides up to 6 hours of burning time per refill. The flame is ignited manually with a lighter and can be easily adjusted with the included extinguishing tool, which allows you to control the flame size and heat output. The maximum heat output is 6.5 kW, making it ideal for heating larger rooms or as part of a built-in bioethanol fireplace solution.

Included in the Package

• Superior bioethanol burner – 5.0 liters with edge
• Extinguishing and adjustment tool
• Instruction manual

Highlighted Features

• Perfect for embedding in walls, tables, or DIY projects
• Capacity: 5 liters – up to 6 hours of burning time
• Heat output up to 6.5 kW
• Made of stainless steel – easy to maintain
• The flame can be easily adjusted with the included tool
• Does not require electricity or a chimney
• Burns clean without smoke, soot, or ash

If used in, for example, a closed wood stove, it may be necessary to remove the door or panels to ensure the burner gets oxygen from the room.

You will find a detailed installation and operation manual for this built-in burner here.

Planika Prime Fire 2.0 990 Automatic Bioethanol Burner

Prime Fire is an automatic bioethanol burner that can be controlled via the included remote control, mobile app, or the built-in control panel. The burner is developed by Planika Fires, one of the leading manufacturers of modern automatic bioethanol fireplaces.

Prime Fire is Planika's most affordable automatic burner, yet it includes many of the same features found in their much more expensive models, FLA4 and FLA4+. Prime Fire is equipped with various safety sensors that assist in its regular use and can automatically shut down the fireplace if any issues are detected.

BEV Technology

The burner utilises Planika's patented BEV flame technology, which evaporates bioethanol fuel before burning it. This ensures a safe and odourless combustion, completely free of ash and smoke.

When it's time to refill the burner, this is done with the included pump. With a single press of a button, the burner’s fuel tank is refilled automatically. Once the tank is full, the pump stops, making it impossible to overfill the burner. A full refill of the Prime Fire 2.0 990 consists of 5.5 litres of bioethanol, which will burn for up to 8 hours (depending on the flame level).

Prime Fire Flames

Prime Fire 2.0 990 allows you to adjust the flames to 3 levels, an upgrade from the previous version, which only had 2 levels.

You can easily adjust the flames using the included remote control or via the built-in control panel on the burner. Alternatively, you can download an app on your phone, which, in addition to controlling the fireplace’s flames, also provides an overview of fuel consumption and remaining fuel levels.

Included in the Package

• Planika Prime Fire 990 Burner
• Small safety glass for mounting on the burner
• Remote control
• Refill pump
• Installation and user manual

Accessories

If you want to control the Prime Fire burner via your Smart Home system, such as Home Assistant, Crestron, or Vivint, you can purchase Planika's SHS module, which allows the burner to connect to your smart home hub.

If you want to add an extra visual touch to the burner, you can purchase a decoration set with either decorative logs or stones.

Planika Fires does not recommend using third-party decorative logs or stones with their bioethanol fireplaces, as this can cause overheating and damage internal components. Always use accessories approved by Planika for safety and optimal performance.

Explore our selection of decorative accessories for Planika bioethanol fireplaces.

Planika FLA4+ 990 Automatic Bioethanol Burner

The Planika FLA4+ (Fire Line Automatic 4) is Planika Fires' offering of a high-end bioethanol burner where no expense has been spared on features or finish. Here, in a version measuring {spec_41} in width.

The Plus (+) version of the FLA4 has a larger fuel tank than the standard model. With FLA4+ {spec_41}, you therefore get up to {spec_21} of burn time per filling bioethanol.

Planika Fires is one of the world's leading manufacturers of modern and environmentally friendly fireplaces, and FLA4+ is their flagship in automatic remote-controlled bioethanol burners. Planika FLA4 is for those who plan to convert an existing fireplace into a bio fireplace, build their own bio fireplace, or incorporate the fireplace into a TV wall with the fireplace installed beneath the television. The possibilities are many, and imagination is the only limit.

FLA4+ is an update and further development of Planika's popular FLA3 burner. The top plate design, in particular, has been enhanced, with the entire surface now being black, the glass mounted without glass holders, and the built-in control panel updated to a touchscreen hidden under a clever little flap.

The latest bio fireplace technology

Planika FLA4+ utilizes Planika's patented BEV technology, which vaporizes the bioethanol fuel before combustion. This ensures a safe, smoke-free, and soot-free burning of bioethanol.

The burner is easily controlled via the included remote control or by using an app on your phone. It is also possible to operate the fireplace using the built-in touchscreen on the burner, hidden under a clever little door.

Something entirely unique to FLA4+ is the option to connect and control the fireplace via a dedicated Smart Home System. However, this requires the purchase of an SHS module.

When the burner needs to be refilled with bioethanol, it's easily done using the included pump. The pump connects to the burner, after which you simply press a button. The burner's internal fuel tank is automatically filled and stops when the tank is full. This eliminates the risk of incorrect filling and overfilling of the burner.

Adjustable Flame Level

On Planika FLA4+, it is possible to adjust the flames of the fireplace in 6 levels. The heating effect and bioethanol consumption will vary depending on the chosen flame level.

The {spec_41} FLA4+ version has a maximum heating effect of {spec_152} and can burn for up to {spec_21} on a full burner refill.

Highlighted {sub_headline} features

• New and updated design compared to FLA3
• Control via remote control, app, or control panel
• Possibility of Smart Home System connection
• Automatic fireplace shutdown via timer
• Min. room size {spec_26} (cubic meters)
• Requires no chimney or flue

Package Contents

• Planika {sub_headline} bioethanol burner
• Remote control
• Safety glass
• Automatic pump
• Installation and user manual

Accessories

If you wish to further upgrade your fireplace or add a finishing touch, there are options to purchase decorative wood or ceramic stones for a more authentic look.

If you want to connect FLA4+ to your smart home system, you need to purchase Planika's SHS module. This allows you to operate the fireplace using your integrated Smart Home System.

Planika Fires does not recommend using third-party decorative logs or stones with their bioethanol fireplaces, as this can cause overheating and damage internal components. Always use accessories approved by Planika for safety and optimal performance.

Explore our selection of decorative accessories for Planika bioethanol fireplaces.

Planika FLA4 990 Automatic Bioethanol Burner

The Planika FLA4 (Fire Line Automatic 4) is Planika Fires' offering of a high-end bioethanol burner where no expense has been spared on features or finish. Here, in a version measuring {spec_41} in width.

Planika Fires is one of the world's leading manufacturers of modern and environmentally friendly fireplaces, and FLA4 is their flagship in automatic remote-controlled bioethanol burners. Planika FLA4 is for those who plan to convert an existing fireplace into a bio fireplace, build their own bio fireplace, or incorporate the fireplace into a TV wall with the fireplace installed beneath the television. The possibilities are many, and imagination is the only limit.

FLA4 is an update and further development of Planika's popular FLA3 burner. The top plate design, in particular, has been enhanced, with the entire surface now being black, the glass mounted without glass holders, and the built-in control panel updated to a touchscreen hidden under a clever little flap.

The latest bio fireplace technology

Planika FLA4 utilizes Planika's patented BEV technology, which vaporizes the bioethanol fuel before combustion. This ensures a safe, smoke-free, and soot-free burning of bioethanol.

The burner is easily controlled via the included remote control or by using an app on your phone. It is also possible to operate the fireplace using the built-in touchscreen on the burner, hidden under a clever little door.

Something entirely unique to FLA4 is the option to connect and control the fireplace via a dedicated Smart Home System. However, this requires the purchase of an SHS module.

When the burner needs to be refilled with bioethanol, it's easily done using the included pump. The pump connects to the burner, after which you simply press a button. The burner's internal fuel tank is automatically filled and stops when the tank is full. This eliminates the risk of incorrect filling and overfilling of the burner.

Adjustable Flame Level

On Planika FLA4, it is possible to adjust the flames of the fireplace in 6 levels. The heating effect and bioethanol consumption will vary depending on the chosen flame level.

The {spec_41} FLA4 version has a maximum heating effect of {spec_152} and can burn for up to {spec_21} on a full burner refill.

Highlighted {sub_headline} features

• New and updated design compared to FLA3
• Control via remote control, app, or control panel
• Possibility of Smart Home System connection
• Automatic fireplace shutdown via timer
• Min. room size {spec_26} cubic meters
• Requires no chimney or flue

Package Contents

• Planika {sub_headline} bioethanol burner
• Remote control
• Safety glass
• Automatic pump
• Installation and user manual

Accessories

If you wish to further upgrade your fireplace or add a finishing touch, there are options to purchase decorative wood or ceramic stones for a more authentic look.

If you want to connect FLA4 to your smart home system, you need to purchase Planika's SHS module. This allows you to operate the fireplace using your integrated Smart Home System.

Planika Fires does not recommend using third-party decorative logs or stones with their bioethanol fireplaces, as this can cause overheating and damage internal components. Always use accessories approved by Planika for safety and optimal performance.

Explore our selection of decorative accessories for Planika bioethanol fireplaces.
