Foco Two 800

Superior Burner with Edge 3.5L

The Superior Burner with Edge 3.5L is the perfect choice if you are planning to build your own bioethanol fireplace or convert an old fireplace into a modern bioethanol fireplace. The burner has a length of 60 cm and is made of stainless steel, which ensures both durability and efficient combustion. It is designed to be integrated into a wall or installed in your own custom-built project. The burner is ignited with a lighter and extinguished by smothering the flame. The flame size can also be adjusted as needed, allowing you to create the desired atmosphere and heat.

Burner and Heat Output

With a capacity of 3.5 liters, the burner provides up to 7.5 hours of burning time per refill. The included extinguishing tool allows you to easily adjust the flame so you can achieve the desired flame strength. The maximum heat output is 3.3 kW, making it ideal for heating smaller rooms or as part of a built-in bioethanol fireplace solution.

Included in the Package

• Superior Bioethanol Burner – 3.5 liters with edge
• Extinguishing and adjustment tool
• Instruction manual

Highlighted Features

• Perfect for integration into walls or DIY projects
• Capacity: 3.5 liters – burning time up to 7.5 hours
• Heat output up to 3.3 kW
• Made of stainless steel – easy to maintain
• The flame can be easily adjusted with the included tool
• No electricity or chimney required

If you decide to make your own project, you should read more about materials and safety distances here.

In the case of use in, for example, a closed fireplace, it may be necessary to remove the door or doors to ensure the burner gets enough oxygen from the room.

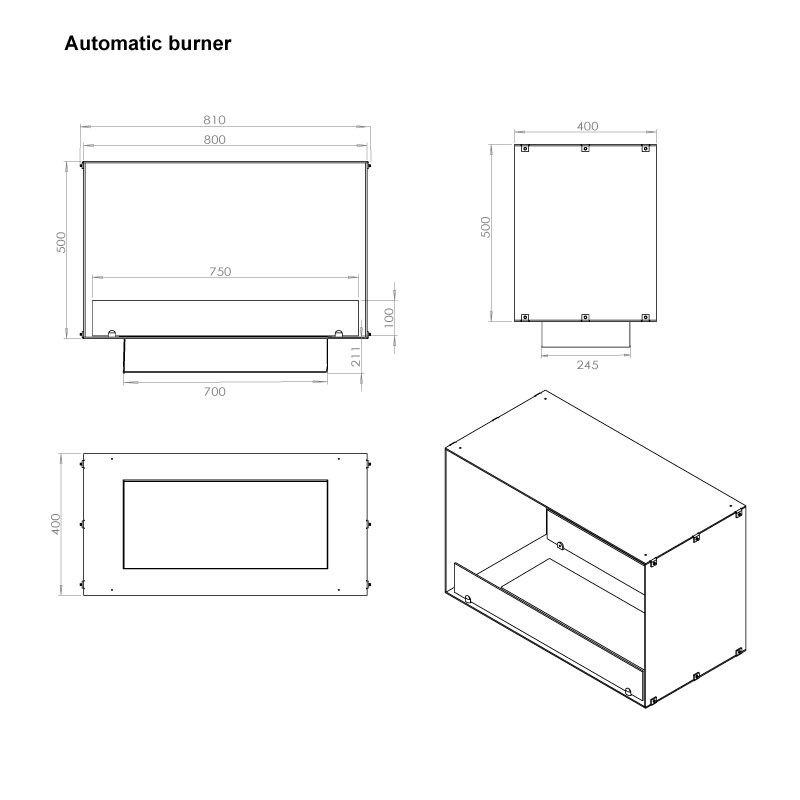

BEV Burner 700 – Automatic Bioethanol Firebox

The BEV Burner 700 is a 70 cm wide and 24.5 cm deep automatic bioethanol burner with remote control – a sleek and modern solution for those who want the cosy ambience of a fireplace without the need for a chimney.

This burner is perfect for DIY projects, whether you're looking to build your own bioethanol fireplace or convert an existing wood-burning stove into a modern and eco-friendly feature.

The BEV Burner 700 is developed by Planika in collaboration with Foco Fires and is compatible with their range of built-in bioethanol fireplaces.

Advanced BEV™ Technology

The burner uses Planika’s patented BEV™ (Burning Ethanol Vapour) technology, where the bioethanol is heated and evaporated before ignition. This means the flame never comes into direct contact with the ethanol liquid, making it one of the safest ways to burn bioethanol.

Automatic Operation

The BEV Burner 700 is easy to operate via the included remote control or the integrated control panel on the burner.

• The flame can be adjusted to 2 levels to control heat output and fuel consumption
• Automatic pump ensures safe and spill-free refuelling
• Requires a 230V power connection

Specifications

• Dimensions: 700 x 245 mm
• Fuel consumption: 0.65 l/h (normal), 0.35 l/h (ECO)
• Heat output: 4.1 kW (normal), 2.2 kW (ECO)
• Tank capacity: 1.9 litres
• Minimum room volume: 40.6 m³

Included in the Package

• BEV Burner 700 bioethanol burner
• Safety glass
• Automatic refuelling pump
• Remote control
• User and installation manual

Note: The burner requires a 230V power supply to operate.

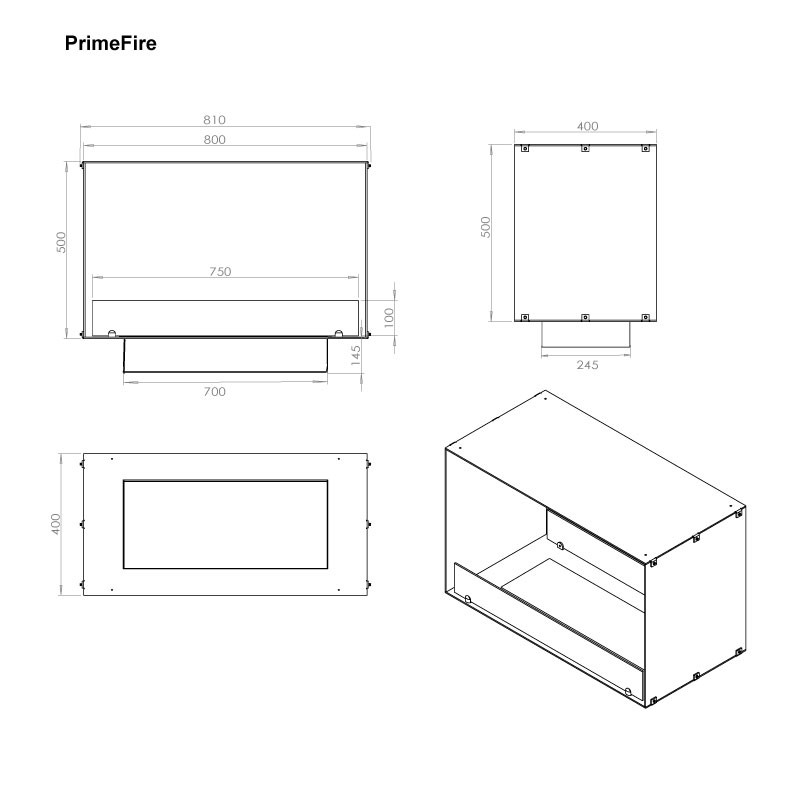

Planika Prime Fire 2.0 590 BEV Automatic Bioethanol Burner

Prime Fire is an automatic bioethanol burner that can be controlled via the included remote control, mobile app, or the built-in control panel. The burner is developed by Planika Fires, one of the leading manufacturers of modern automatic bioethanol fireplaces.

Prime Fire is Planika's most affordable automatic burner, but it includes many of the same features found in their much more expensive models, FLA4 and FLA4+. Prime Fire is equipped with various safety sensors that assist in its regular use and can automatically shut down the fireplace if any issues are detected.

BEV Technology

The burner utilises Planika's patented BEV flame technology, which evaporates bioethanol fuel before burning it. This ensures a safe and odourless combustion, completely free of ash and smoke.

When it's time to refill the burner, this is done with the included pump. With a single press of a button, the burner’s fuel tank is refilled automatically. Once the tank is full, the pump stops, making it impossible to overfill the burner. A full refill of the Prime Fire 2.0 590 consists of 3.1 litres of bioethanol, which will burn for up to 5 hours (depending on the flame level).

Prime Fire Flames

Prime Fire 2.0 590 allows you to adjust the flames to 3 levels, an upgrade from the previous version, which only had 2 levels.

You can easily adjust the flames using the included remote control or via the built-in control panel on the burner. Alternatively, you can download an app on your phone, which, in addition to controlling the fireplace’s flames, also provides an overview of fuel consumption and remaining fuel levels.

Included in the Package

• Planika Prime Fire 590 Burner
• Small safety glass for mounting on the burner
• Remote control
• Refill pump
• Installation and user manual

Accessories

If you want to control the Prime Fire burner via your Smart Home system, such as Home Assistant, Crestron, or Vivint, you can purchase Planika's SHS module, which allows the burner to connect to your smart home hub.

If you want to add an extra visual touch to the burner, you can purchase a decoration set with either decorative logs or stones.

Planika Fires does not recommend using third-party decorative logs or stones with their bioethanol fireplaces, as this can cause overheating and damage internal components. Always use accessories approved by Planika for safety and optimal performance.

Explore our selection of decorative accessories for Planika bioethanol fireplaces.

Planika FLA4 590 Automatic Bioethanol Burner

The Planika FLA4 (Fire Line Automatic 4) is Planika Fires' offering of a high-end bioethanol burner where no expense has been spared on features or finish. Here, in a version measuring {spec_41} in width.

Planika Fires is one of the world's leading manufacturers of modern and environmentally friendly fireplaces, and FLA4 is their flagship in automatic remote-controlled bioethanol burners. Planika FLA4 is for those who plan to convert an existing fireplace into a bio fireplace, build their own bio fireplace, or incorporate the fireplace into a TV wall with the fireplace installed beneath the television. The possibilities are many, and imagination is the only limit.

FLA4 is an update and further development of Planika's popular FLA3 burner. The top plate design, in particular, has been enhanced, with the entire surface now being black, the glass mounted without glass holders, and the built-in control panel updated to a touchscreen hidden under a clever little flap.

The latest bio fireplace technology

Planika FLA4 utilizes Planika's patented BEV technology, which vaporizes the bioethanol fuel before combustion. This ensures a safe, smoke-free, and soot-free burning of bioethanol.

The burner is easily controlled via the included remote control or by using an app on your phone. It is also possible to operate the fireplace using the built-in touchscreen on the burner, hidden under a clever little door.

Something entirely unique to FLA4 is the option to connect and control the fireplace via a dedicated Smart Home System. However, this requires the purchase of an SHS module.

When the burner needs to be refilled with bioethanol, it's easily done using the included pump. The pump connects to the burner, after which you simply press a button. The burner's internal fuel tank is automatically filled and stops when the tank is full. This eliminates the risk of incorrect filling and overfilling of the burner.

Adjustable Flame Level

On Planika FLA4, it is possible to adjust the flames of the fireplace in 6 levels. The heating effect and bioethanol consumption will vary depending on the chosen flame level.

The {spec_41} FLA4 version has a maximum heating effect of {spec_152} and can burn for up to {spec_21} on a full burner refill.

Highlighted {sub_headline} features

• New and updated design compared to FLA3
• Control via remote control, app, or control panel
• Possibility of Smart Home System connection
• Automatic fireplace shutdown via timer
• Min. room size {spec_26} cubic meters
• Requires no chimney or flue

Package Contents

• Planika {sub_headline} bioethanol burner
• Remote control
• Safety glass
• Automatic pump
• Installation and user manual

Accessories

If you wish to further upgrade your fireplace or add a finishing touch, there are options to purchase decorative wood or ceramic stones for a more authentic look.

If you want to connect FLA4 to your smart home system, you need to purchase Planika's SHS module. This allows you to operate the fireplace using your integrated Smart Home System.

Planika Fires does not recommend using third-party decorative logs or stones with their bioethanol fireplaces, as this can cause overheating and damage internal components. Always use accessories approved by Planika for safety and optimal performance.

Explore our selection of decorative accessories for Planika bioethanol fireplaces.

Planika FLA4+ 590 Automatic Bioethanol Burner

The Planika FLA4+ (Fire Line Automatic 4) is Planika Fires' offering of a high-end bioethanol burner where no expense has been spared on features or finish. Here, in a version measuring {spec_41} in width.

The Plus (+) version of the FLA4 has a larger fuel tank than the standard model. With FLA4+ {spec_41}, you therefore get up to {spec_21} of burn time per filling bioethanol.

Planika Fires is one of the world's leading manufacturers of modern and environmentally friendly fireplaces, and FLA4+ is their flagship in automatic remote-controlled bioethanol burners. Planika FLA4 is for those who plan to convert an existing fireplace into a bio fireplace, build their own bio fireplace, or incorporate the fireplace into a TV wall with the fireplace installed beneath the television. The possibilities are many, and imagination is the only limit.

FLA4+ is an update and further development of Planika's popular FLA3 burner. The top plate design, in particular, has been enhanced, with the entire surface now being black, the glass mounted without glass holders, and the built-in control panel updated to a touchscreen hidden under a clever little flap.

The latest bio fireplace technology

Planika FLA4+ utilizes Planika's patented BEV technology, which vaporizes the bioethanol fuel before combustion. This ensures a safe, smoke-free, and soot-free burning of bioethanol.

The burner is easily controlled via the included remote control or by using an app on your phone. It is also possible to operate the fireplace using the built-in touchscreen on the burner, hidden under a clever little door.

Something entirely unique to FLA4+ is the option to connect and control the fireplace via a dedicated Smart Home System. However, this requires the purchase of an SHS module.

When the burner needs to be refilled with bioethanol, it's easily done using the included pump. The pump connects to the burner, after which you simply press a button. The burner's internal fuel tank is automatically filled and stops when the tank is full. This eliminates the risk of incorrect filling and overfilling of the burner.

Adjustable Flame Level

On Planika FLA4+, it is possible to adjust the flames of the fireplace in 6 levels. The heating effect and bioethanol consumption will vary depending on the chosen flame level.

The {spec_41} FLA4+ version has a maximum heating effect of {spec_152} and can burn for up to {spec_21} on a full burner refill.

Highlighted {sub_headline} features

• New and updated design compared to FLA3
• Control via remote control, app, or control panel
• Possibility of Smart Home System connection
• Automatic fireplace shutdown via timer
• Min. room size {spec_26} (cubic meters)
• Requires no chimney or flue

Package Contents

• Planika {sub_headline} bioethanol burner
• Remote control
• Safety glass
• Automatic pump
• Installation and user manual

Accessories

If you wish to further upgrade your fireplace or add a finishing touch, there are options to purchase decorative wood or ceramic stones for a more authentic look.

If you want to connect FLA4+ to your smart home system, you need to purchase Planika's SHS module. This allows you to operate the fireplace using your integrated Smart Home System.

Planika Fires does not recommend using third-party decorative logs or stones with their bioethanol fireplaces, as this can cause overheating and damage internal components. Always use accessories approved by Planika for safety and optimal performance.

Explore our selection of decorative accessories for Planika bioethanol fireplaces.

Full glass for FOCO 800 Built-in fireplace

Transform your FOCO 800 bio fireplace into a modern work of art with a full glass. This elegant glass panel not only improves your fireplace's safety by acting as a protective screen, but also adds a refined edge to its appearance. With a clear view of the fluttering flames, your fireplace becomes a natural center of the room.

It is important to note that a full glass should only be installed on one side of the double-sided biofireplace, to allow sufficient air flow and optimal combustion. This design ensures that the warmth and atmosphere of the fireplace can be enjoyed responsibly and safely, making it an ideal solution for any modern home.

Exterior Frame for Foco One 800 and Foco Two 800 bio ethanol fires

The exterior frame is mounted on the Foco 800 inner frame, and provides a edge around the built-in fireplace.

If you build your Foco One or Foco Two bio ethanol fireplace into an existing wall, it can be difficult to get the perfect finish around the hole for the fireplace. With this outer frame, you can easily hide the imperfections.

This frame is made from the same steel and with the same powder coating, as the inner frame. The exterior frame itself has a width of 5 cm all the way around and is 4 mm thick.

Mounting of the Exterior Frame

Installation requires the following tools:

• Drill
• Metal Drill

Procedure:

1. Remove the safety glass and glass holders from the inner frame
2. Slide the exterior frame into the built-in frame
3. The mounting holes at the bottom of the outer and inner frame should now match
4. Attach the glass holders through both the exterior and the inner frame
5. At the top of the inner frame, drill two holes that match the holes in the outer frame
6. Now screw the outer frame through those holes, drilled in the inner frame and also in the wall

This Exterior Frame Fits the Following Foco Models:

• Foco One 800 Medium
• Foco Two 800 Medium
• Foco One 800
• Foco Two 800
