Foco Two 600 Slim

Deluxe refilling funnel for bioethanol fireplaces

Avoid spilling bioethanol when refilling the bio fire. This professional funnel for filling bioethanol is designed specific for bio fires.

Highlighted specifications

• Produced in stainless steel
• Big opening which minimizes waste
• Safe tool for filling your bioethanol fireplace

The funnel is simply placed into the burner, and then the filling of ethanol begins in the normal way. Indispensable tool for you who want a safe filling of the fireplace.

Did you know, that most of the accidents of bio fires happens under the filling? This is either because they are overfilled or poured on an open flame. Therefore, always use your common sense when filling the fireplace. Be sure to refill when the fireplace is cold. If you spill bioethanol, it is important that this is removed before lightning the fireplace.

Heat Deflector for Foco Built-In Fireplaces

A heat deflector designed for installation at the top of Foco built-in fireplaces. The heat deflector protects electronic devices such as TVs or soundbars, mounted above the Foco fireplace, from the heat generated by the fireplace.

• The deflector is compatible with all Foco models.

Long lighter for bioethanol fireplace

Fireplace lighter to ignite your bio fireplace safely and comfortably. Avoid using the regular lighter where one can be in close contact with the flame by using this lighter.

What is more, it is recommended to use a long lighter since it is more comfortable to ignite with it. Additionally, it provides extra security so that the person who ignites is kept at a safe distance from the fire.

The lighter measures 17.5 cm and is thus particularly useful for igniting a fireplace. It can, with advantage, be used on other occasions and to ignite a candle.

NB: Ships without lighter gas.

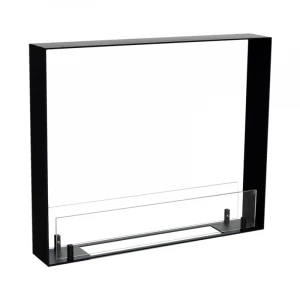

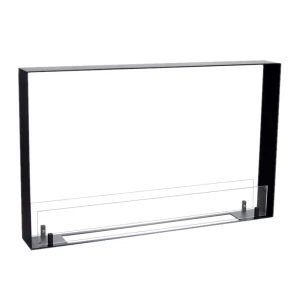

Exterior frame for Foco One 600 and Foco Two 600 Bioethanol Fireplaces

The outer frame is mounted on the Foco 600 frame and provides a frame around the built-in fireplace.

If you build your Foco One or Foco Two bio fireplace into an existing wall, it can be difficult to create a perfect finish around the frame. With this exterior frame, you can easily hide all imperfections.

The outer frame is made from the same steel and with the same powder coating as the Foco built-in frame. The outer frame itself has a width of 5 cm all the way around and has a thickness of 4 mm.

Installation of the Exterior Frame

Installation requires the following tools:

• Drill
• Metal Drill

Procedure:

1. Remove the safety glass and glass holders from the built-in frame
2. Slide the exterior frame into the inner frame.
3. The mounting holes in the bottom of the outer frame and the inner frame should now fit together.
4. Attach the glass holders through both the exterior and the built-in frame.
5. At the top of the inner frame, drill two holes that match the holes in the outer frame.
6. Now screw the outer frame through the holes drilled in the inner frame and also in the wall.

This Exterior Frame Fits the Following Foco Models:

• Foco One 600 Slim
• Foco Two 600 Slim
